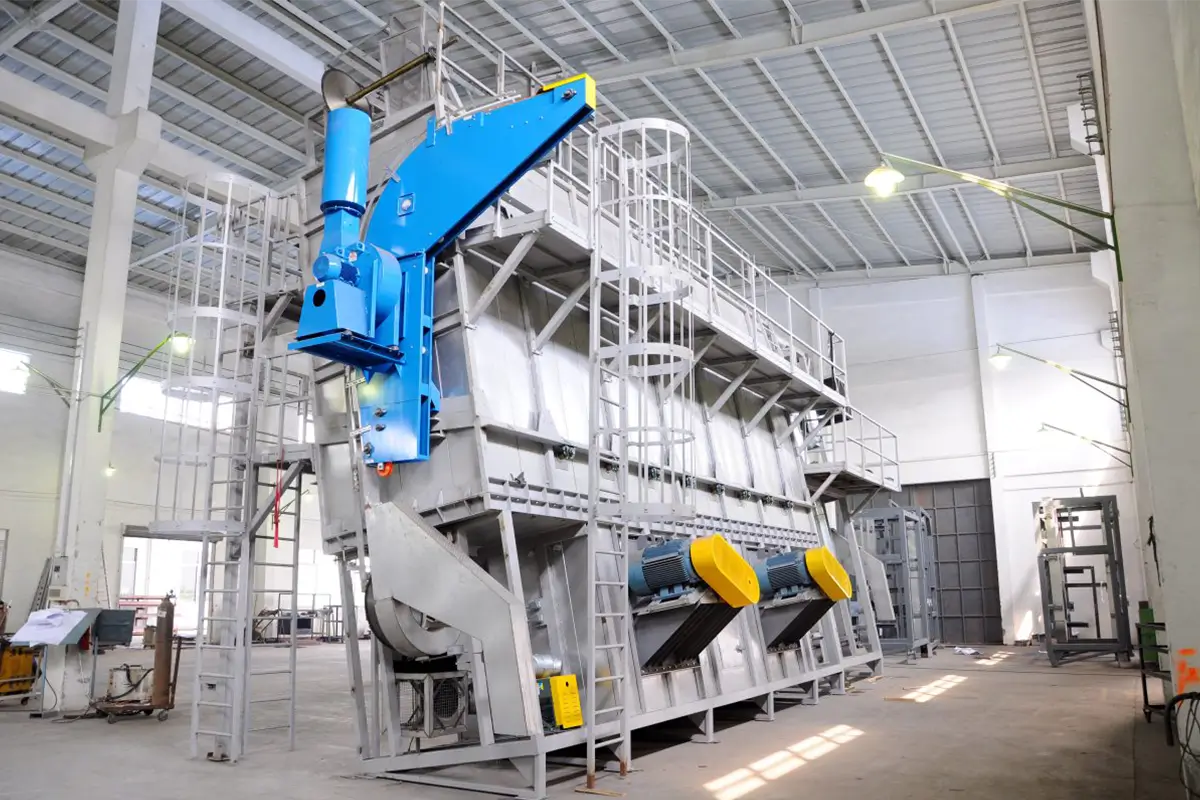

Pin Oven

Designed to maximize ease and efficient operation, the Woolley Pin Oven has a single heat zone configuration that features temperature uniformity allowing the can to be cured in either ten or twelve passes. The cans are carried through the Oven to cure the freshly applied label from the Decorator via the pin chain that maximizes can stability. Made with a sturdy steel frame and compact machine footprint, and platform on top of the Oven to maintain the return chain pass, the Oven features high accessibility for safe and efficient maintenance.

The front frame is designed with physical space for your Bottom Rim Coater in addition to the chain tensioning unit. An optional two pass cooling chamber, equipped with VFD fans, helps to reduce overall heat loss into the plant. Following the cooling chamber, the cans are discharged via the VFD Vacuum Pin Stripper which transfers the cans off the pin chain and onto traditional conveyance. The Pin Stripper is designed for label camera inspection installation. ARC Pacific’s 6-inch insulated wall technology helps the Oven retain heat efficiently while also minimizing overall gas consumption. The 2-inch external safety cool walls offer safer conditions for operators.
